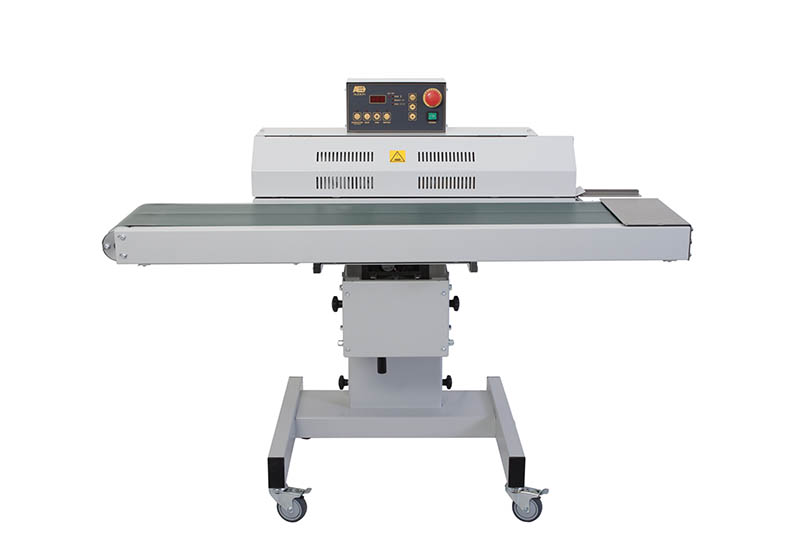

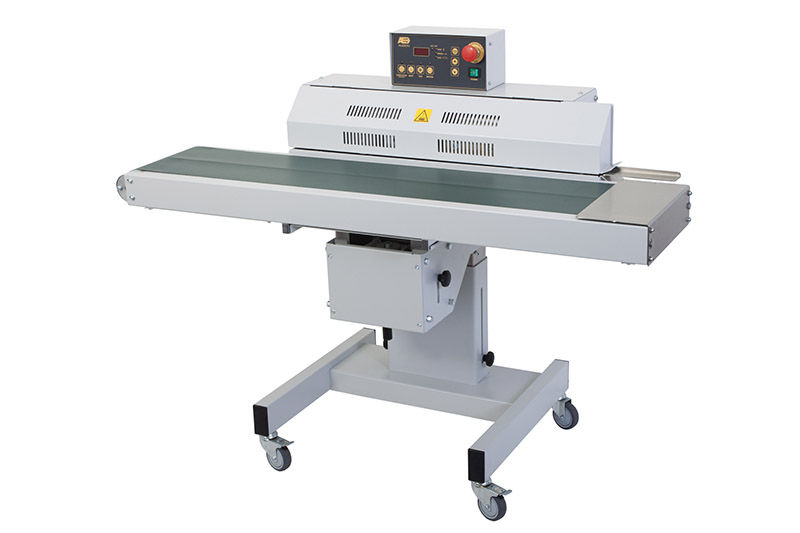

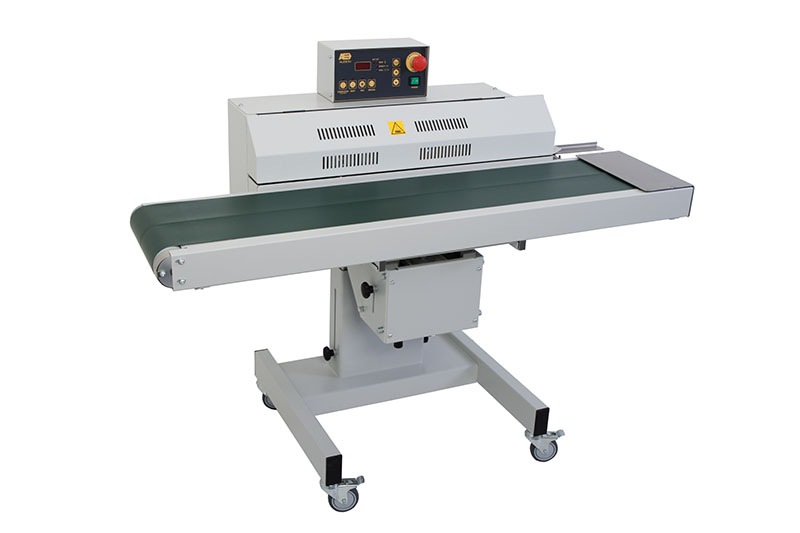

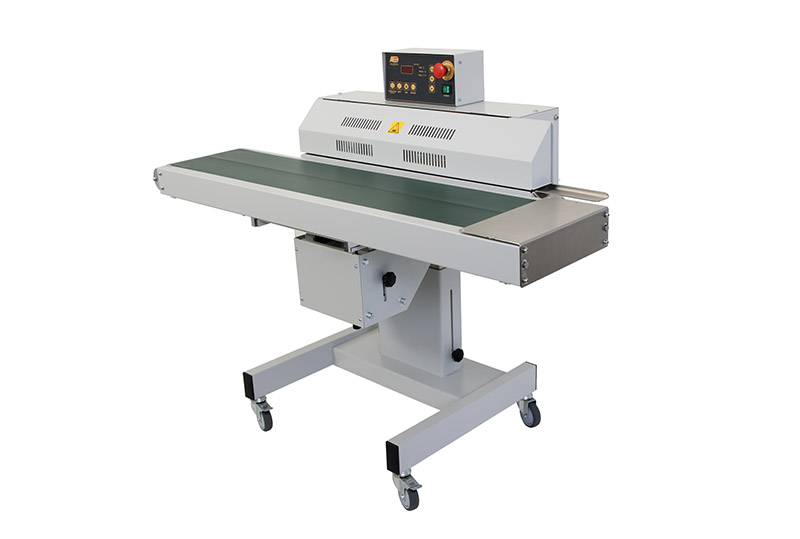

D552 Horizontal

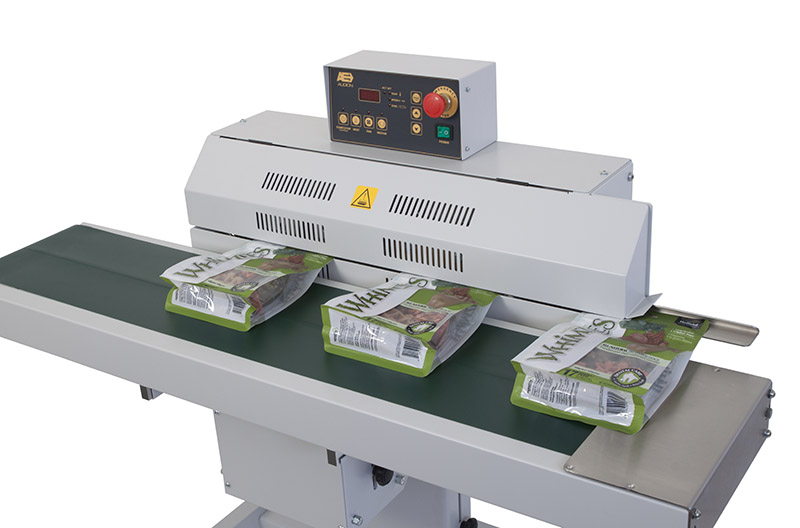

D 552 AH band sealer continuously seals bags lying flat, for applications requiring speed and convenience.

The sealing unit is adjustable in height and can also be tilted up to 30° to keep free flowing products in the bag. The conveyor unit can also be adjusted in height by 35mm separately from the sealing unit. For longer product, the conveyor frame can be pulled out by 70mm. The new conveyor belt is attached with rubber guide on the inside and it runs along the groove made on the conveyor frame. This structure keeps the belt always in the center position therefore the adjustment is not necessary anymore.

All operating parameters are controlled by a digital control panel, including an automatic cool down function. By using PTFE seal belts; polyethylene, polypropylene, cellophane, paper, aluminium and other laminates can be sealed. The maximum distance between the seal and the top of the bag is 40 mm.

Options: Code seal, stainless steel construction (D 552 HS)

Download PDF

Product D552 Horizontal
Seal length Unlimited
Seal width 10 mm
Type of machine semi automatic
Model Floor
Covering Epoxy
Knife no
Pedal operated No
Type of film -
Thickness of film 2 x 120 micron (min.2 x 20)
Type of package Bag
Branche/Application Backery, coffee & tea, fruit & vegetables, industrial parts, office supplies, packaging & logistics, pet food, shop
Type of product Granulate, powder, solid
