D 552 Vertical

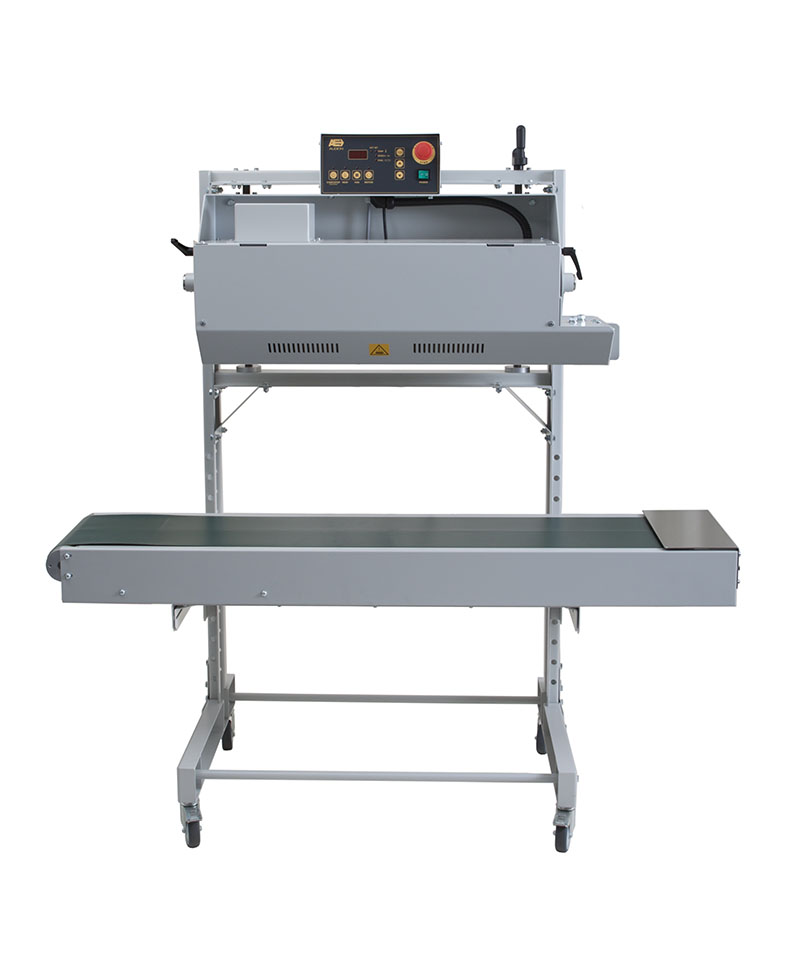

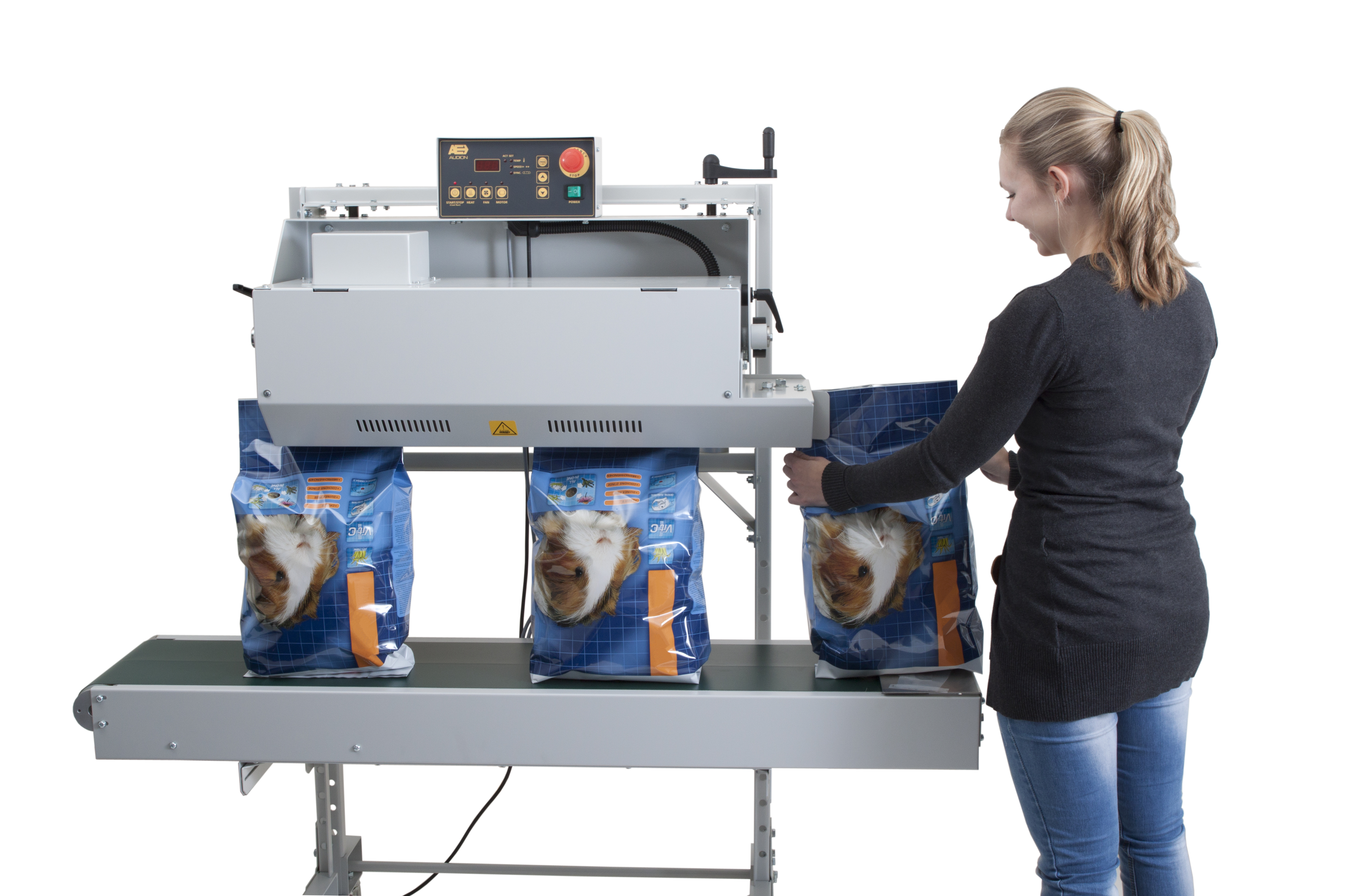

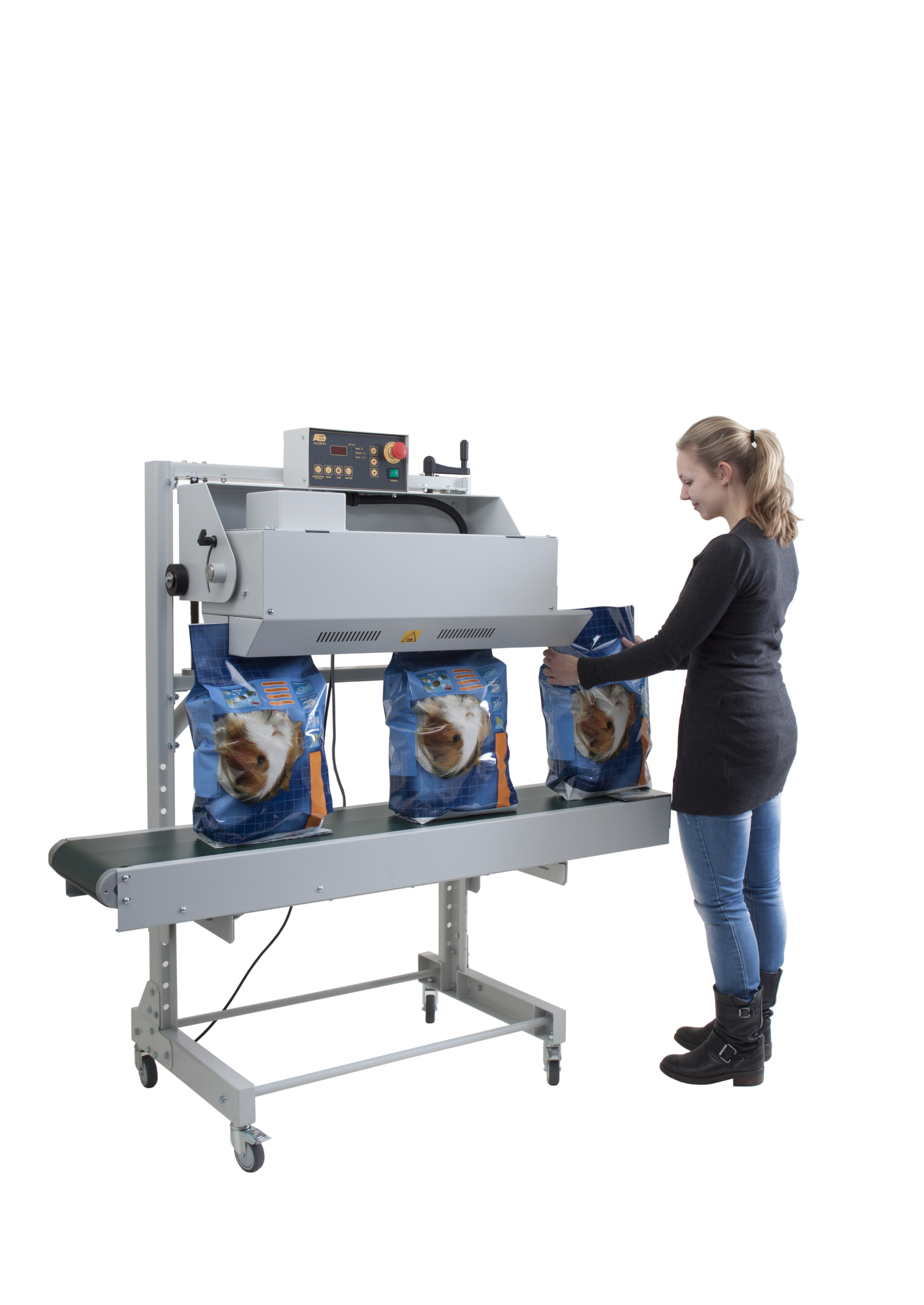

D 552 AVT is a vertical band sealer, designed for large pre-made bags that are sealed standing up.
It is ideal for powder, liquid, or solid products that would spill if sealed lying flat. The sealing head on the D 552 AVT can be rotated 90°C, from vertical to horizontal, and is also adjustable in height. The D 552 AVT has the same easy-to-operate digital control panel and PTFE seal belts as the D 552 AH. The D 552 AVT is equipped with a height-adjustable integrated conveyor belt. The speed of this conveyor can be synchronized to the sealing unit from the control panel.

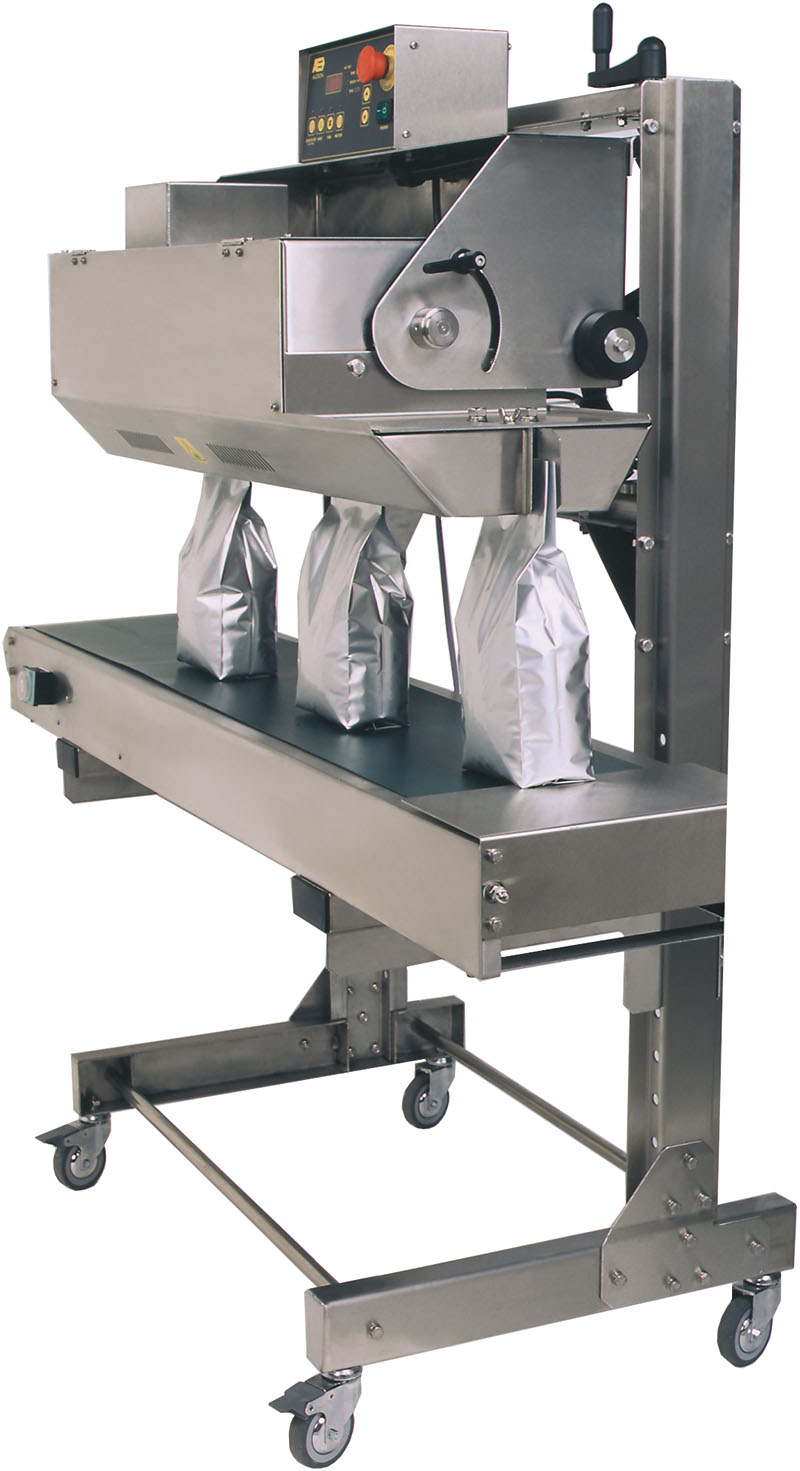

 code seal, stainless steel construction (D 552 VTS)

Download PDF

Product D 552 Vertical
Seal length Unlimited
Seal width 10 mm
Type of machine Continuous Sealer, Semi Automatic
Model Floor
Covering Epoxy
Knife Option
Pedal operated No
Type of film Celophane, Laminate, Ready Made Bags, PP (Polypropylene), PE (Polyethylene)
Thickness of film 2 x 120 micron (min.2 x 20)
Type of package Bag
Branche/Application Backery, Coffee & Tea, Fruit & Vegetables, Industrial Parts, Office Supplies, Packaging & Logistics, Pet Food, Shop, warehouse
Type of product Fluid, Granulate, Powder, Solid
